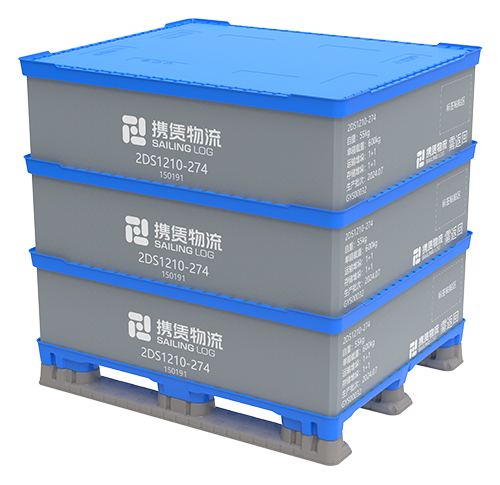

Blue Shield.1210-DL-1215
Product Details
Technical Date
| 产品型号 | 2DS1210-274 |
|---|---|
| Maximum outer dimension（mm) | 1215*1015*1150 |
| Maximum internal size (mm) | 1155*955*294 |
| Number of cladding layers | 3 |
| Load capacity per layer (kg) | 200 |
| Single box load capacity (kg) | 600 |
| Static load stacking (kg) | 1200 |
| Dynamic load stacking (kg) | 1200 |
| Empty container weight (kg) | 56 |
Application scenarios
Automated mobility
1.Suitable for pallet AGVs
2.Suitable for roller AGV and roller conveyors
Storage
1、Packaging box storage is suitable for ground stacking, and it is required that the load on the load-bearing materials be evenly distributed
2、Packaging box storage is suitable for high-level shelves and automated pallet three-dimensional warehouses
Material protection
Suitable for small and medium-sized goods and light cargo protection
Unsuitable scenarios
Extreme cold environment
It is not recommended to use in extreme cold environments below minus 40℃
Rainstorm and flood
Long term rainwater immersion environment is not recommended for use
Other harsh environments
Environments such as high temperatures or close to open flames
Violent operation
Violent operation during transportation is prohibited
Deformation
Please contact us in case of deforms
Damaged
Don't use if any damage of key area
EU6428
暂无信息
